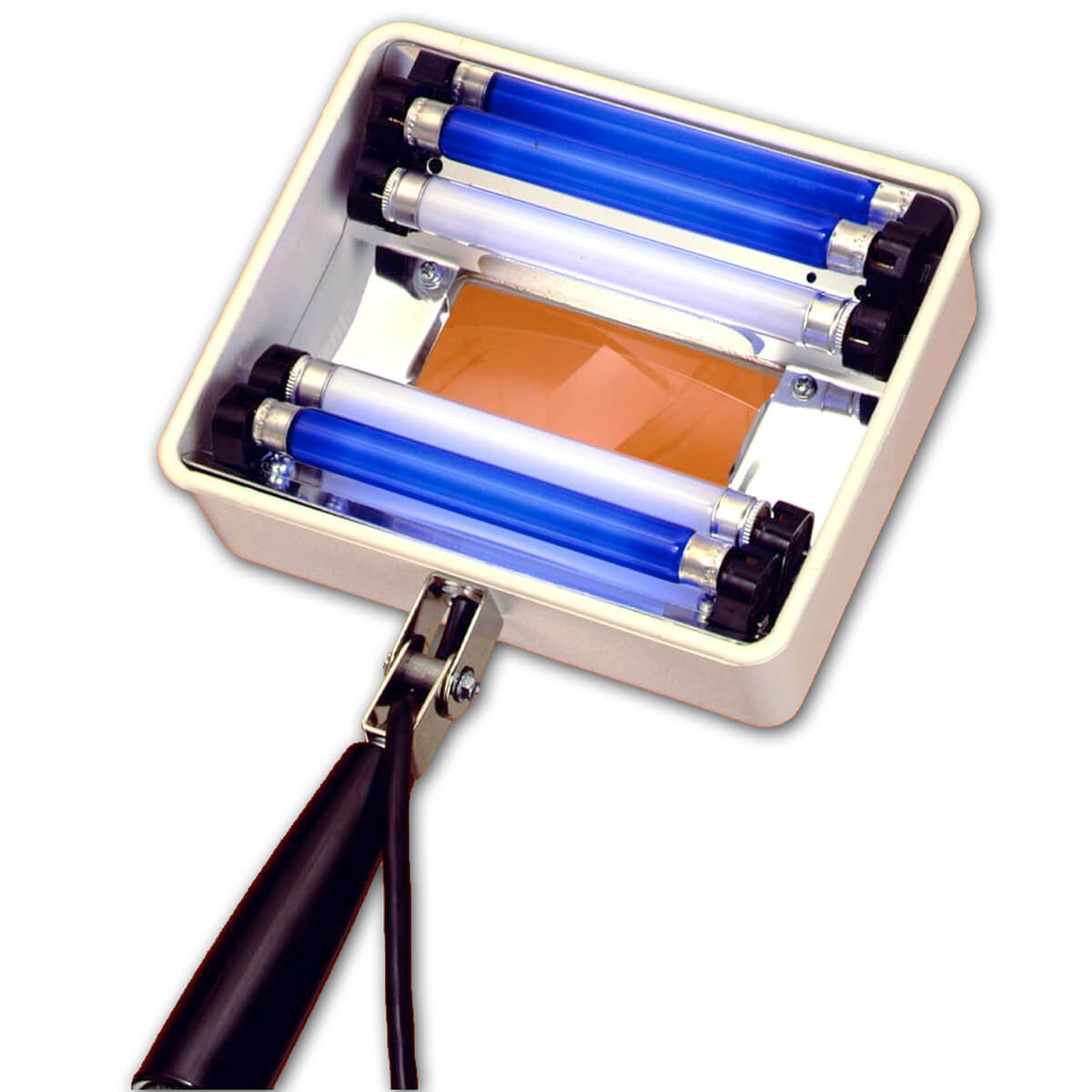

Our most popular examination light has two ultraviolet tubes and two fluorescent tubes flanking a 2"x4" ground glass, high-resolution, 3-power magnifier at an 8" focal length. Seperate switches control the UV and fluorescent tubes. An optional stand provides for hands-free operation. The angle between the handle and the unit is adjustable to suit the operator.
Model #Q-22B: Has the same features as Model Q-22, except that all 4 tubes are UV.
Model #-22F: Has same features as #Q-22, but 220 volt.
Model #Q-22FB: Has features of #Q-22B, but 220 volt.
Q22FA (B-4): Flexible arm unit with bench mount (clamp)
Q22FA (T-4): Flexible arm unit with table mount (screw mount)
Q22FA (W-4): Flexible arm unit with wall mount
These products should be used with protective UV filtering eyewear found in this section.
Peak Intensity at 6": Q-22 - 650, Q-22B - 1200 microW/cm2.
An improvement of a flexible arm makes the Q22 even better.
The lamp is now available with a unique pantographic, spring-balanced flexible arm, which extends 36" (91cm) and swings in a 360 degree arc. This permits instant raising, lowering and positioning of the unit. There is a choice of three mounting brackets, W4 unit is a wall mount, the B-4 unit is a bench mount and the T-4 unit is the table mount.
Replacement bulbs are available and sold separately. All Q-22 models use the BLE-220B (UV Bulb) and the BLE-95D (White Light Bulb).
